Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation
Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

Grote Afbeelding :  Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

Productdetails:
Plaats van herkomst: Jiangsu, China
Merknaam: FILTERK
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: $20-30
Contact

Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

beschrijving
Filtratie -efficiëntie: 99% Porositeit: 0.3u
Gewicht: 0,8 Materiaal: Roestvrij staal
Buitendiameter: 150 Binnendiameter: 88
Hoogteopties: 600, 800, 900, 1000, 1150 Bedrijfstemperatuur: 5 ° C - 80 ° C
Skelettemateriaal: Koolstofstaal geperforeerd Filtermateriaal: Teflon
Filtermateriaalvorm: Geplooid, verpakt Werkdruk: Tot 1,0 MPa
Maximale temperatuur: 80 ° C Min temperatuur: -30 ° C
Vloeibare aerosolefficiëntie: 99,9% voor 0,01 μm en groter
Markeren:

99% Efficiency Coalescing Filter Element

,

0.3u Porosity Cartridge Filter Element

,

Gas/Liquid Separation Stainless Steel Filter Element

Stainless Steel Coalescing Filter Element for Gas/Liquid Separation, Dehydration and Removal
Our high-performance stainless steel coalescing filter element is designed for efficient gas/liquid separation, dehydration, and removal of liquid aerosols and contaminants from compressed air and gas systems. The filter media features a multi-layer coalescing structure that captures and merges fine liquid droplets into larger ones, which are then drained away, ensuring clean, dry, and high-quality gas output.
Key Features
  • Durable Construction: Made of stainless steel for excellent corrosion resistance and long service life, suitable for harsh environments.
  • Efficient Coalescence: Advanced coalescing technology effectively removes oil, water, and other liquid aerosols with high separation efficiency.
  • Wide Compatibility: Ideal for compressed air, natural gas, biogas, and other gas applications requiring dehydration and purification.
  • Low Pressure Drop: Optimized design minimizes energy consumption and maintains system efficiency.
  • Easy Maintenance: Replaceable filter element simplifies upkeep and reduces operating costs.
Applications
  • Compressed air systems
  • Natural gas dehydration and purification
  • Biogas processing
  • Industrial gas pipelines
  • Pneumatic equipment protection
Specifications
  • Material: Stainless steel (housing and media support)
  • Filtration Efficiency: Up to 99.9% for liquid aerosols (0.01 μm and larger)
  • Operating Pressure: Up to 1.0 MPa (standard, customizable for higher pressures)
  • Operating Temperature: -30°C to 80°C
  • Available in various sizes and micron ratings for custom needs.
Enhance your gas system's reliability and performance with our robust coalescing filter elements. Contact us for customized solutions!
Technical Parameters
Parameter Details
Filter Element Size Outer Diameter: 150
Inner Diameter: 88
Height 600, 800, 900, 1000, 1150
Operating Temperature 5°C - 80°C
Skeleton Carbon Steel Perforated
Filter Material Teflon
Filter Material Form Pleated
Wrapped
Performance Characteristics Strong Hydrophobicity, Strong Oil Permeability
Large Filter Area, Simple Structure, Easy to Install

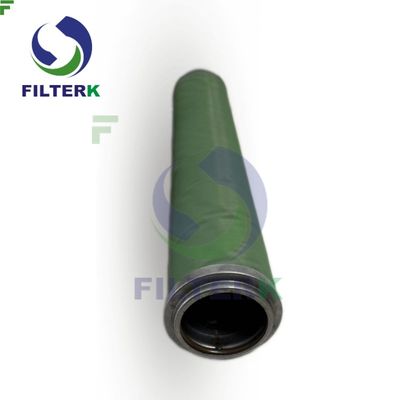

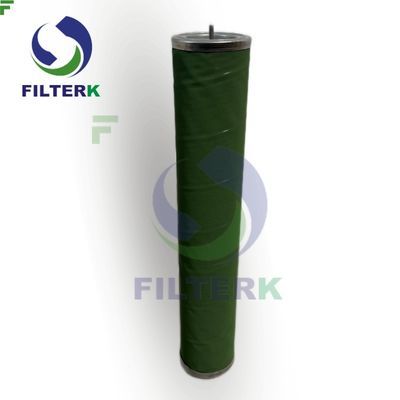

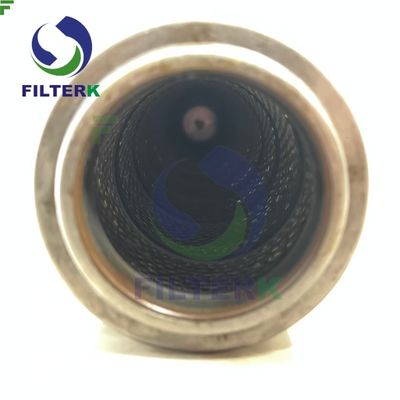

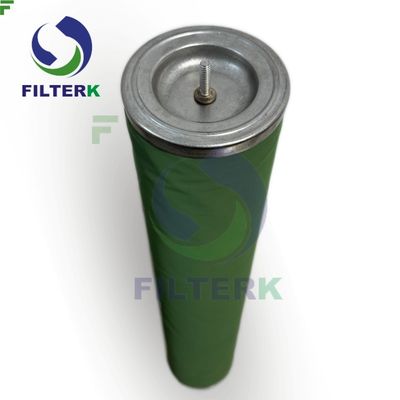

Product Images
Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation 0
Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation 1
Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation 2
Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation 3
Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation 4
Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation 5
Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation 6
