Robust Cartridge Filter Element Designed for Integrated 4040 Single Stage RO Water Purification System Ensuring Water Filtration

Robust Cartridge Filter Element Designed for Integrated 4040 Single Stage RO Water Purification System Ensuring Water Filtration
Robust Cartridge Filter Element Designed for Integrated 4040 Single Stage RO Water Purification System Ensuring Water Filtration Robust Cartridge Filter Element Designed for Integrated 4040 Single Stage RO Water Purification System Ensuring Water Filtration Robust Cartridge Filter Element Designed for Integrated 4040 Single Stage RO Water Purification System Ensuring Water Filtration Robust Cartridge Filter Element Designed for Integrated 4040 Single Stage RO Water Purification System Ensuring Water Filtration

Grote Afbeelding :  Robust Cartridge Filter Element Designed for Integrated 4040 Single Stage RO Water Purification System Ensuring Water Filtration

Productdetails: Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: 4000USD
Betalingscondities: D/P, L/C, D/A, T/T, Western Union
Contact

Robust Cartridge Filter Element Designed for Integrated 4040 Single Stage RO Water Purification System Ensuring Water Filtration

beschrijving
Bovenste maat: 460x83 mm Minimale deeltjesgrootte: 0.5 micron
Garantie: 12 maanden Maat: (H) 60 mm (OD) 720 mm
Het filtreren precisie: 0,3-0,5 μm filtermedia: Geplooid/smeltgeblazen/snaarwond
Verenigbaarheid: Water, chemicaliën, oliën FFiltratie-efficiëntie: 99.8% (deeltjes groter dan 0,3-0,5 mm)
Temperatuurbereik: -4°F~212°F Filtergebied: 2.3 m2
Buitennetwerk: Gegalvaniseerd Diamond Mesh Pakking: Schuimrubber
Gewicht: 10,6 kg Top End Caps: Gegalvaniseerd
Afdichtingsmateriaal: Viton, EPDM, siliconen rubber, NBR
Markeren:

4040 RO water filter cartridge

,

single stage RO cartridge filter

,

integrated RO water purification filter

Product Name: Integrated 4040 Single-Stage RO Water Purification System

Water Production Capacity: 2 tons per hour

Machine Frame: Thickened 304 stainless steel integrated frame, anti-corrosion and high load-bearing capacity, suitable for installation on balconies, workshops and other sites.

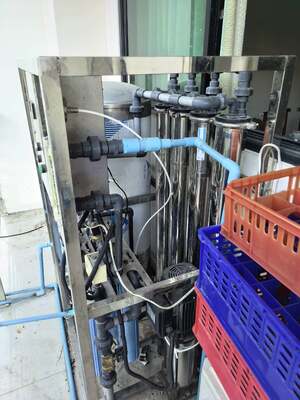

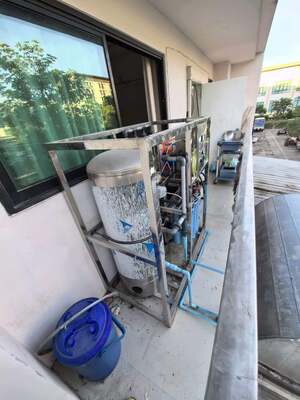

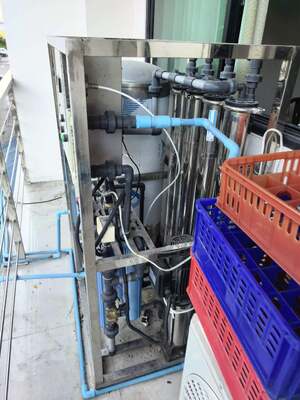

Configuration of the photographed unit: 4 pcs stainless steel 4040 membrane housings, 3-stage pre-filtration system, vertical high-pressure booster pump, SUS304 stainless steel pressure water storage tank, system pressure gauge, anti-scaling dosing assembly.

Complete Structural Introduction

1. Pre-treatment Filtration System

Equipped with 3-stage blue PP filter cartridges. It sequentially intercepts large impurities such as sediment, rust, colloid and worm eggs in raw water, effectively protecting the rear RO membrane elements and greatly extending membrane service life.

An independent dosing barrel for anti-scaling agent is matched. Anti-scaling chemical can be added manually or automatically to restrain scaling of calcium and magnesium ions and prevent membrane blockage & performance attenuation.

2. Core Reverse Osmosis Filtration System

Fitted with 4 sets of standard stainless steel 4040 membrane housings for 4040 size RO membranes. Matched with vertical high-pressure booster pump to supply stable water pressure required by reverse osmosis process.

Based on physical screening principle, it efficiently removes limescale, heavy metal ions, bacteria, microorganisms and dissolved salts from water, producing pure water with low conductivity.

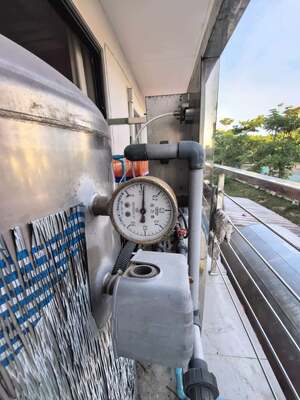

A precision pressure gauge is mounted on the side of the machine to display real-time operating pressure. Operators can easily judge blocked filters or pump malfunctions during daily inspection.

3. Water Storage & Pressure Stabilization Supply System

Comes with large-capacity SUS304 stainless steel pressure storage tank to store finished pure water. It buffers water pressure, avoids frequent start-stop of the high-pressure pump, and ensures stable continuous water supply for terminals.

4. Pipeline Fittings

The whole machine adopts industrial anti-corrosion UPVC pipelines with standard unions and ball valves for easy disassembly and maintenance. Three independent pipelines are divided for raw water inlet, pure water outlet and concentrated wastewater discharge, with clear and controllable drainage.

Core Advantages

  1. Integrated compact design, no complicated assembly required. Simply connect water pipes after delivery to start production.
  2. 304 stainless steel frame resists moisture and weak acid/alkali, ideal for outdoor balconies, food workshops and processing plants.
  3. Dual purification of graded pre-filtration + reverse osmosis delivers stable water quality, meeting standards of commercial drinking water & industrial cleaning water.
  4. Visual pressure monitoring simplifies fault detection, low maintenance threshold without full-time professional technicians.
  5. Compatible with tap water, underground well water and other water sources; matched anti-scaling system prevents membrane clogging during long-term operation.

Application Industries & Scenarios

Catering shops, small food processing factories, beverage stores, hardware workpiece cleaning, laboratory pure water supply, daily chemical blending, farm & homestay centralized water supply, supporting water for workshop equipment.

Operation & Maintenance Instructions

  1. Replace front PP filter cartridges every 1–3 months, adjust cycle according to turbidity of raw water.
  2. Chemically clean RO membranes every 6–12 months; normal service life of RO membranes is 2–3 years.
  3. A sunshade & rain cover is recommended for outdoor installation to slow down aging and rust of pipelines and motors.
  4. Standard operating pressure range: 0.1–0.4MPa. Sudden pressure drop is usually caused by blocked pre-filters; replace filters timely to recover water output.

label:

de geplooide patroon van de sedimentfilter,

synthetische luchtfilter,

De patroon van de polyesterfilter
